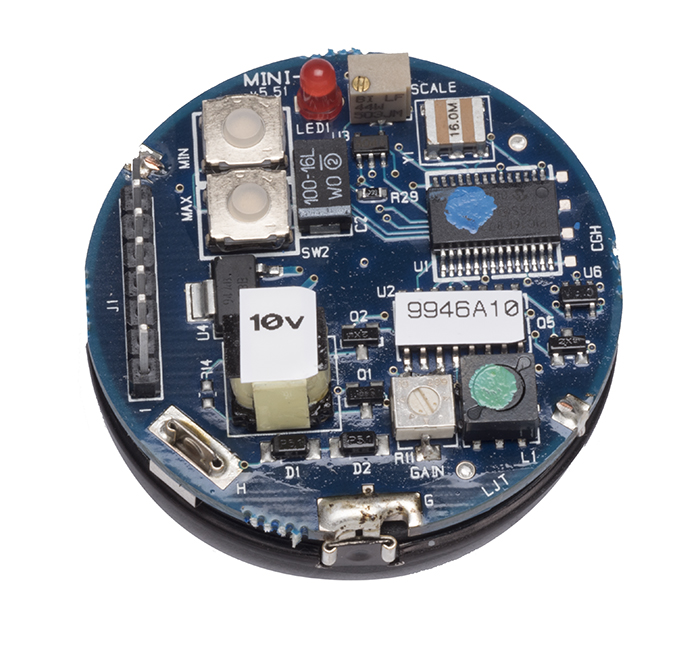

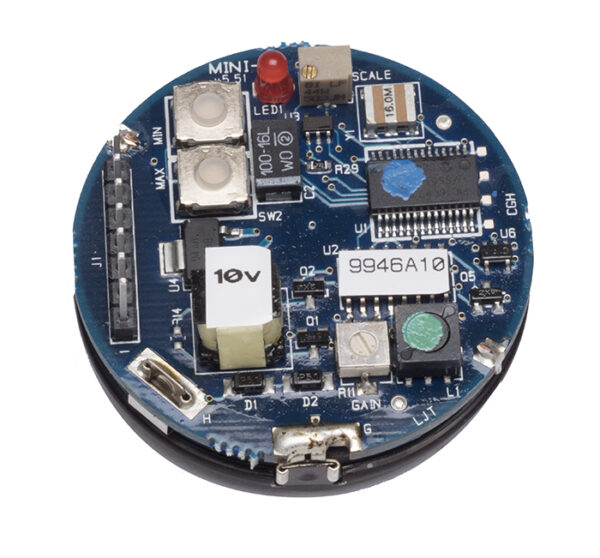

The SensComp SonaSwitch® Series MINI-A electrostatic ultrasonic sensor system provides a complete sensor solution to simplify your product design and packaging.
Features
- 50 KHz Electrostatic Ultrasonic Sensor with Integrated SMT Electronic Circuitry
- Ranges from 1” to 12”, 6” to 20’ or from 12” to 40’
- Analog Output from 0 to 5 VDC or from 0 to 10 VDC
- Independent Push-Button Settable Zero and Span
- Adjustment of Analog Output
- Range Window LED Indication
- Analog Output Temperature Compensated
The SonaSwitch® MINI-A Sensor provides a total system in a compact package, containing an ultrasensitive electrostatic ultrasonic sensor and the supporting circuitry to provide a 0 to +5 VDC (or 0 to +10 VDC) output with fully independent zero and span adjustments over the entire operating range of detecting a target from 1-12 inches, 6 “ – 20’, or from 12” – 40’ away. The SonaSwitch® MINI-A can be externally triggered, or can continually sense at a 10 Hz rate.
Download the Specification Sheet for full details.
Download the Ultrasonic 6500 Ranging System Operations Manual
