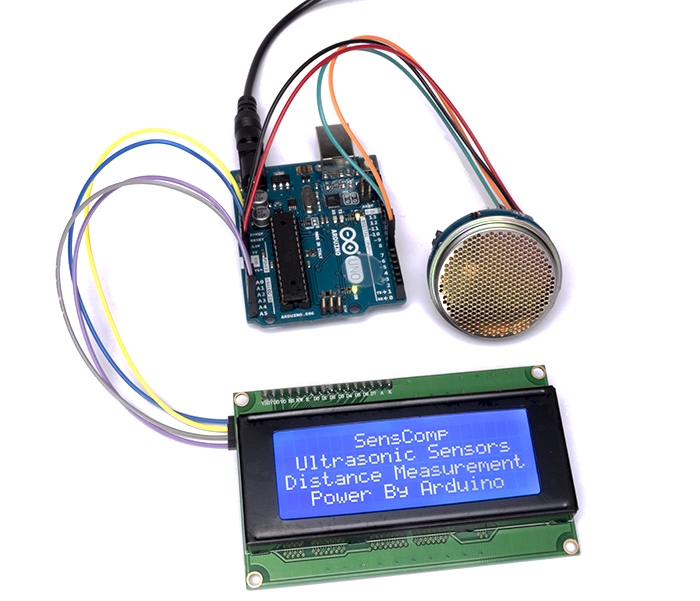

This The SensComp Smart Sensor is based on the ultra-sensitive Series 600 Electrostatic Ultrasonic sensor line with an enhanced version of our 6500 Ranging Module on board. Paired up with the Arduino® microcontroller board and LCD display module offers a quick way to experiment with and design ultrasonic systems.
Kits Features:
- 50 KHz Electrostatic Ultrasonic Smart Sensor with SMT Electronic Circuitry
- Range: 1.5’ – 35.0’
- PWM (ECHO) Output
- Arduino® UNO Microcontroller
The Smart sensor’s TTL compatible open collector outputs include pullup resistors. Configuration of the onboard oscillator circuit enables the unit to be continually clocked at 5 Hz or can be externally clocked up to 50HZ.
The onboard digitally controlled gain and variable bandwidth amplifier minimizes noise and side lobe detection in sonar applications. The typical absolute accuracy is ±1% of the reading over the entire range.
This compact integrated design of SensComp’s Series 600 Smart Sensor along with the Arduino® microcontroller board will expedite the product development process.
Download the Specification Sheet for full details.
Download the Ultrasonic 6500 Ranging System Operations Manual
